Description

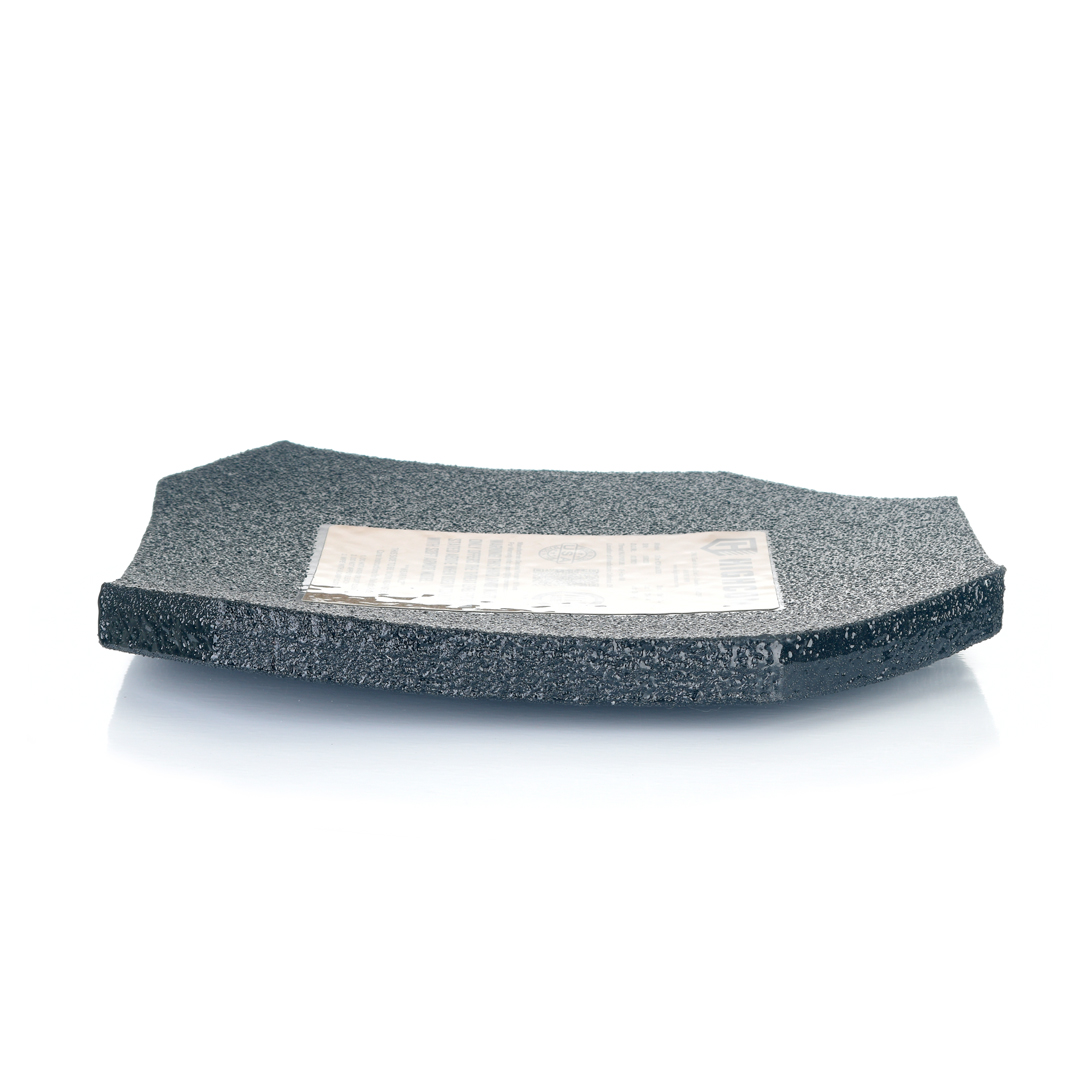

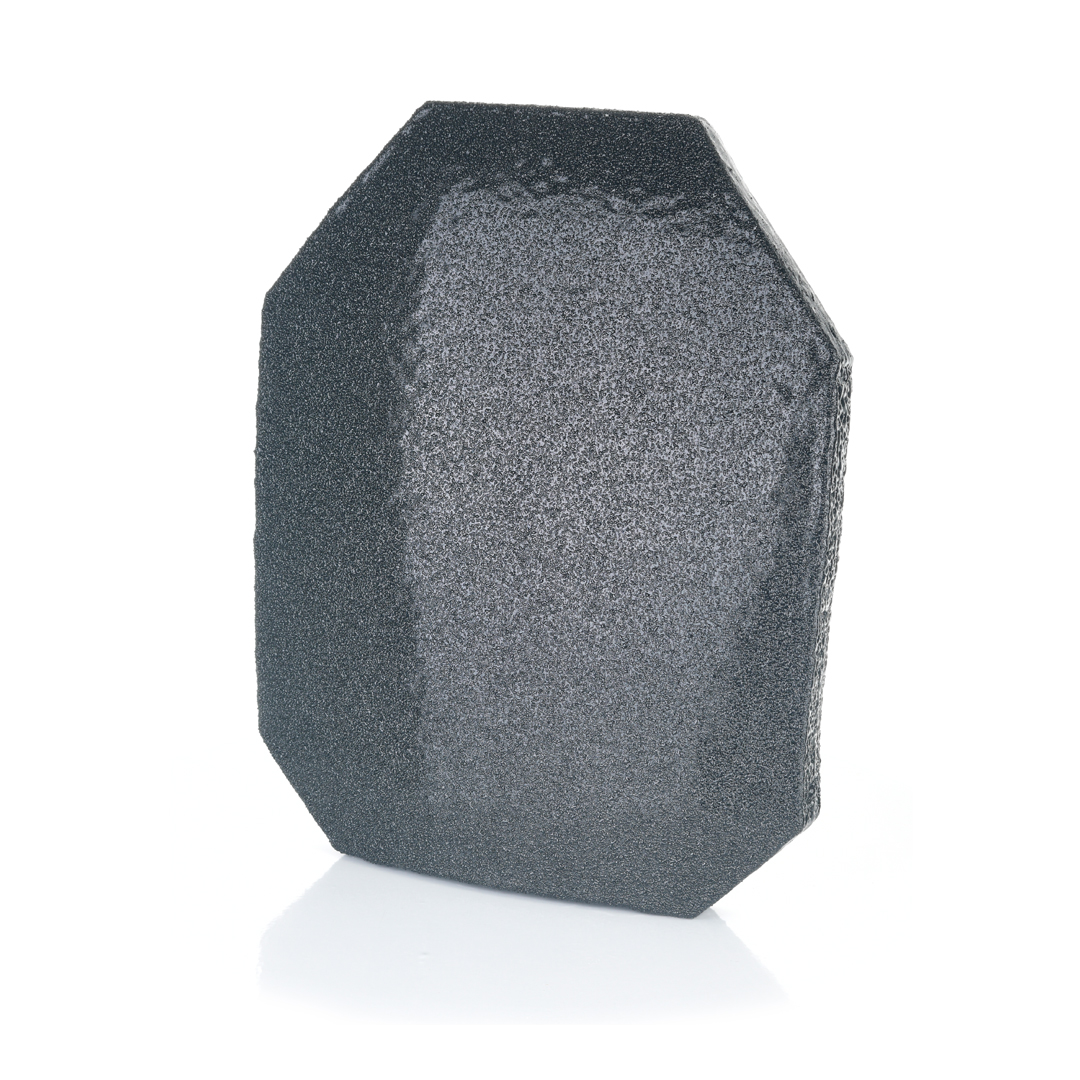

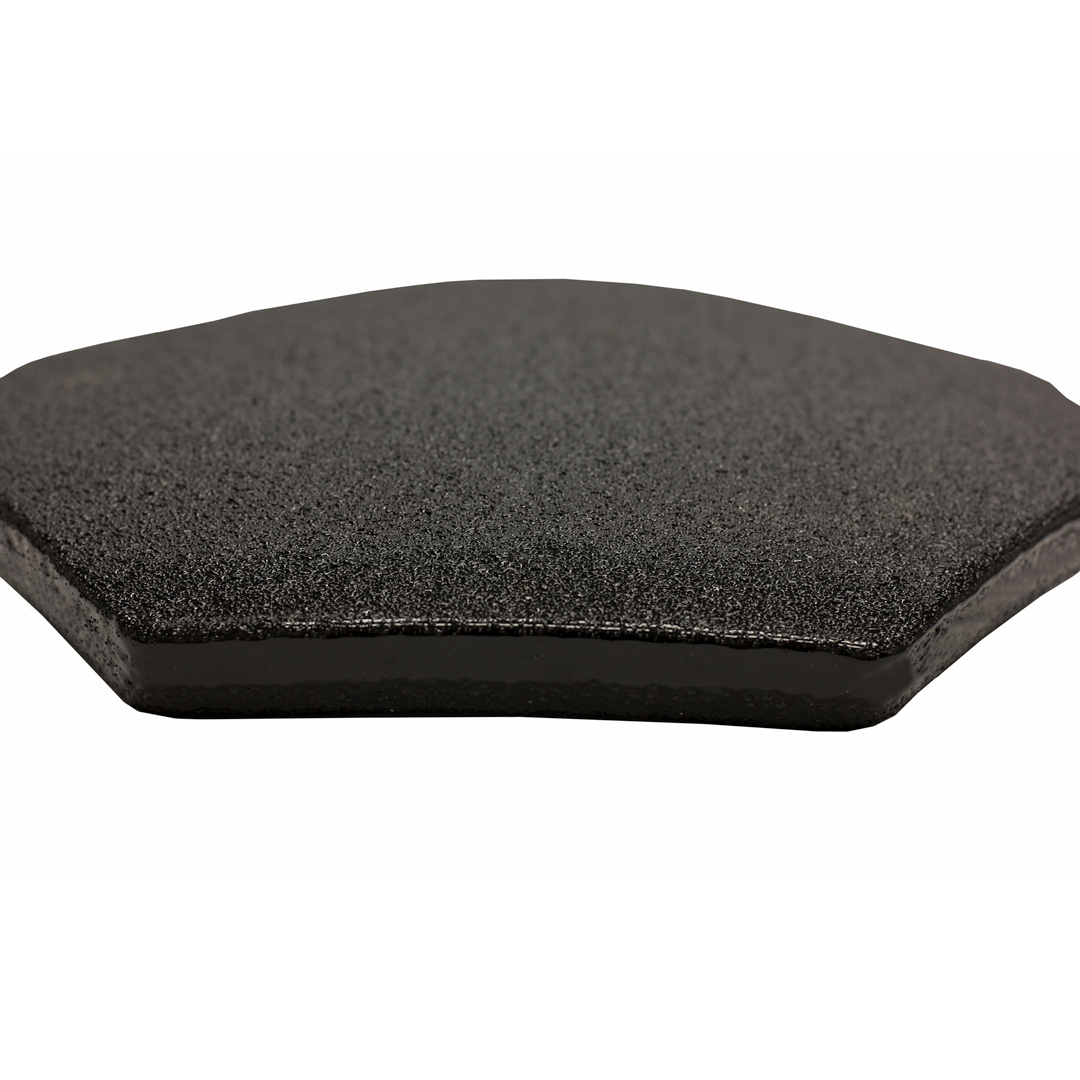

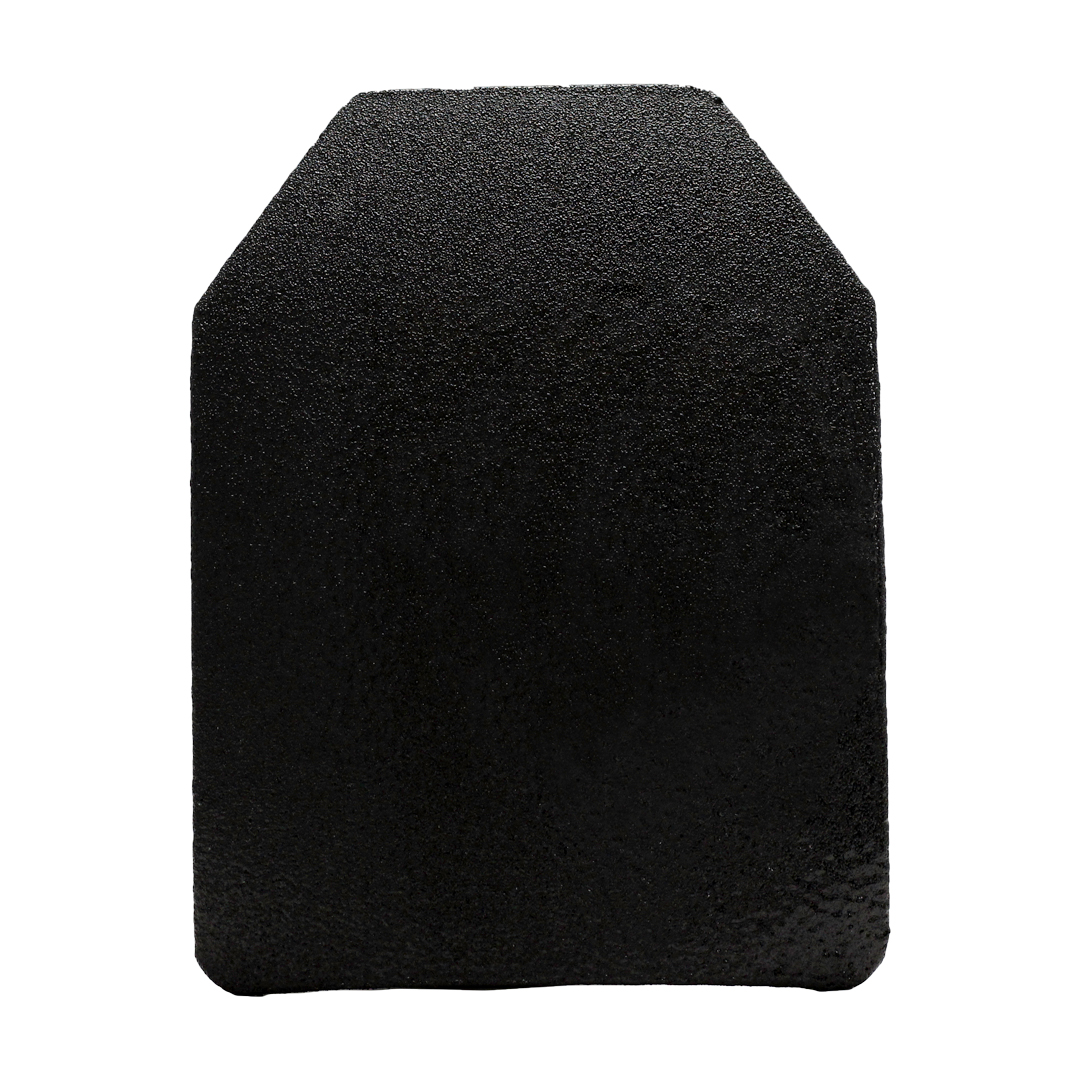

Chase Tactical 3i7m Level III+ Ultra Lightweight Rifle Armor Plate
The Chase Tactical 3i7M Level III+ Ultra Lightweight Rifle Armor Plate is manufactured using XTclave™ a composite curing and consolidation technology. The 3i7m plate stops Level III+ rifle threats when worn in conjunction with the Trooper sa3920™ Level IIIA soft armor or the Trooper sa2910™ Level II soft armor.
3i7M Level III+ Ultra Lightweight Rifle Armor Plate Features
- Protection: Level III+ ICW with sa3920 Level IIIA soft armor OR sa2910 Level II soft armor
- NIJ Standard 0101.06 CERTIFIED: This product is NIJ 0101.06 compliant and can be found on the NIJ’s CPL (Compliant Product List) when worn with sa3920 level IIIA soft armor (Product is listed as Guardian 3i7m ICW sa3920)
- ICW Level II TESTED: This product has been independently tested by an NIJ approved laboratory according to the NIJ 0101.06 standard of protection ICW sa2910 Level II soft armor
- XTclave: Made in XTclave™ ultra high-pressure consolidation
- Material: 100% DSM Dyneema® UHMWPE
- Exterior Cover: Polyurea with Rhino Extreme 11-50 anti spall coated system
- Areal Density: 2.7 psf / 13.2 kg/m²
- Thinness: 22 mm or 0.87”
- Warranty: 10 years on all ballistic material excluding exterior cover and 1 year on exterior cover material and workmanship
- Disclaimer: Text shown on strike face is for marketing purposes only. The actual labels on Chase Tactical products are NIJ approved self-adhesive labels.
- MADE IN THE USA
BALLISTIC ROUNDS TESTED
| STANDARD | WEAPON | PROJECTILE | GR | VEL FT/S | VEL M/S | (+/- FT/S) |
|---|---|---|---|---|---|---|
| NIJ 0101.06 | Rifle | 7.62 mm FMJ, Steel Jacketed Bullets (M80) | 147 | 2780 | 847 | (+/- 30 fps) |
| Special | Rifle | 7.62 x 39mm Mild Steel Core | 123 | 2400 | 731 | (+/- 50 fps) |
| Special | Rifle | 5.56 x 45mm M193 | 55 | 3250 | 991 | (+/- 50 fps) |
SIZE & WEIGHTS
- 10”x12” Multi Curve Shooter 1.8 lbs 0.83 kg
- 7.25”x11.5” Multi Curve SAPI (XS) 1.5 lbs 0.70 kg
- 8.75”x11.75” Multi Curve SAPI (S) 1.9 lbs 0.87 kg
- 9.5”x12.5” Multi Curve SAPI (M) 2.2 lbs 1.0 kg
- 10”x13.25” Multi Curve SAPI (L) 2.5 lbs 1.16 kg
- 11”x14” Multi Curve SAPI (XL) 2.9 lbs 1.32 kg
Due to the nature of this product, All Sales are Final. Warranty/MFG Defects excluded. LE/MIL only shipments to CT. Please allow 2-3 Weeks for shipment.
PLATES ARE SOLD AS INDIVIDUAL UNITS UNLESS OTHERWISE STATED
